ORBLR CYBR11 | 11kW Wall EV Charger | Three Phase
Shipping Free | Includes GST | 7 Days Return*

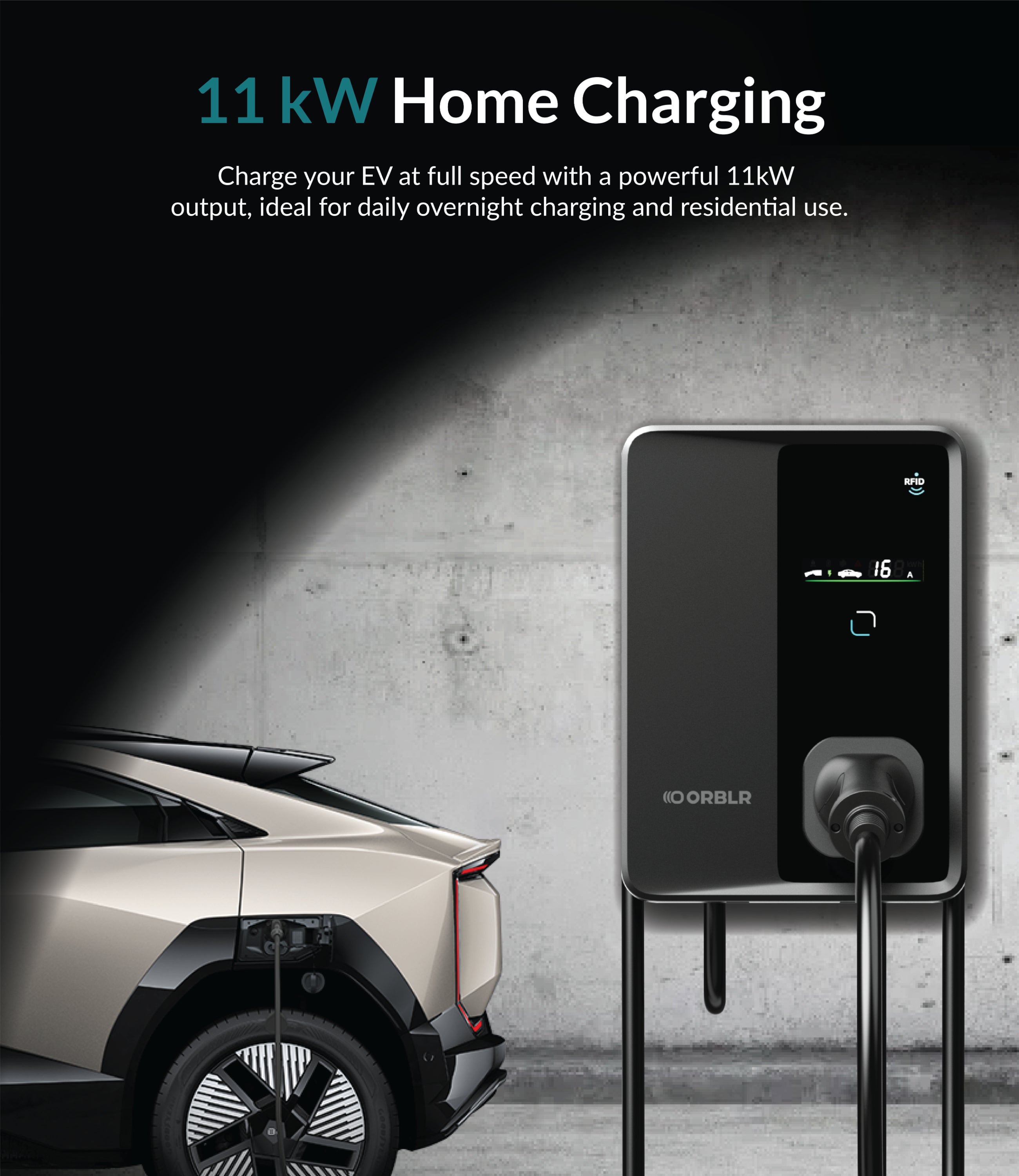

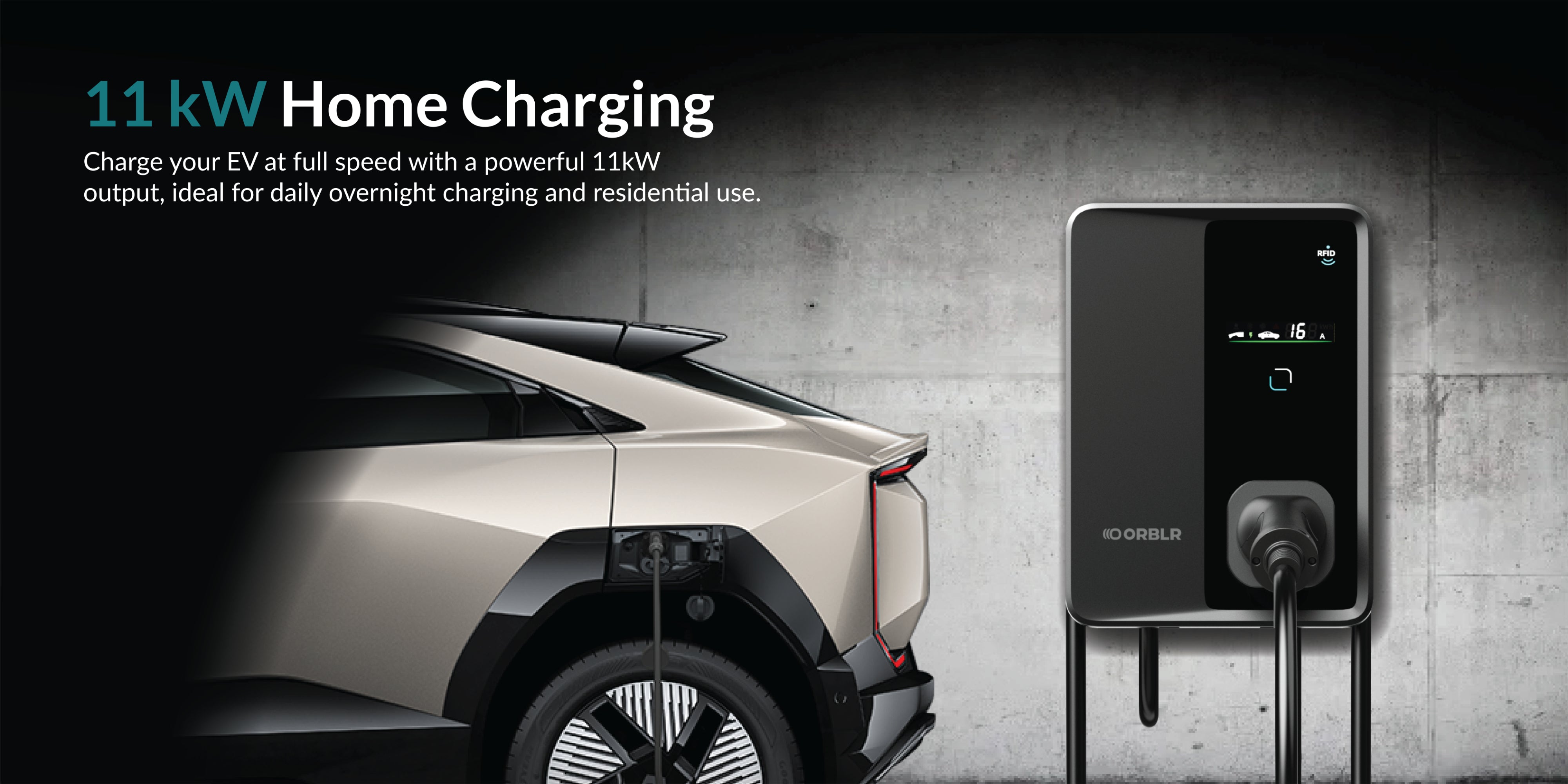

11 kW Home Charging

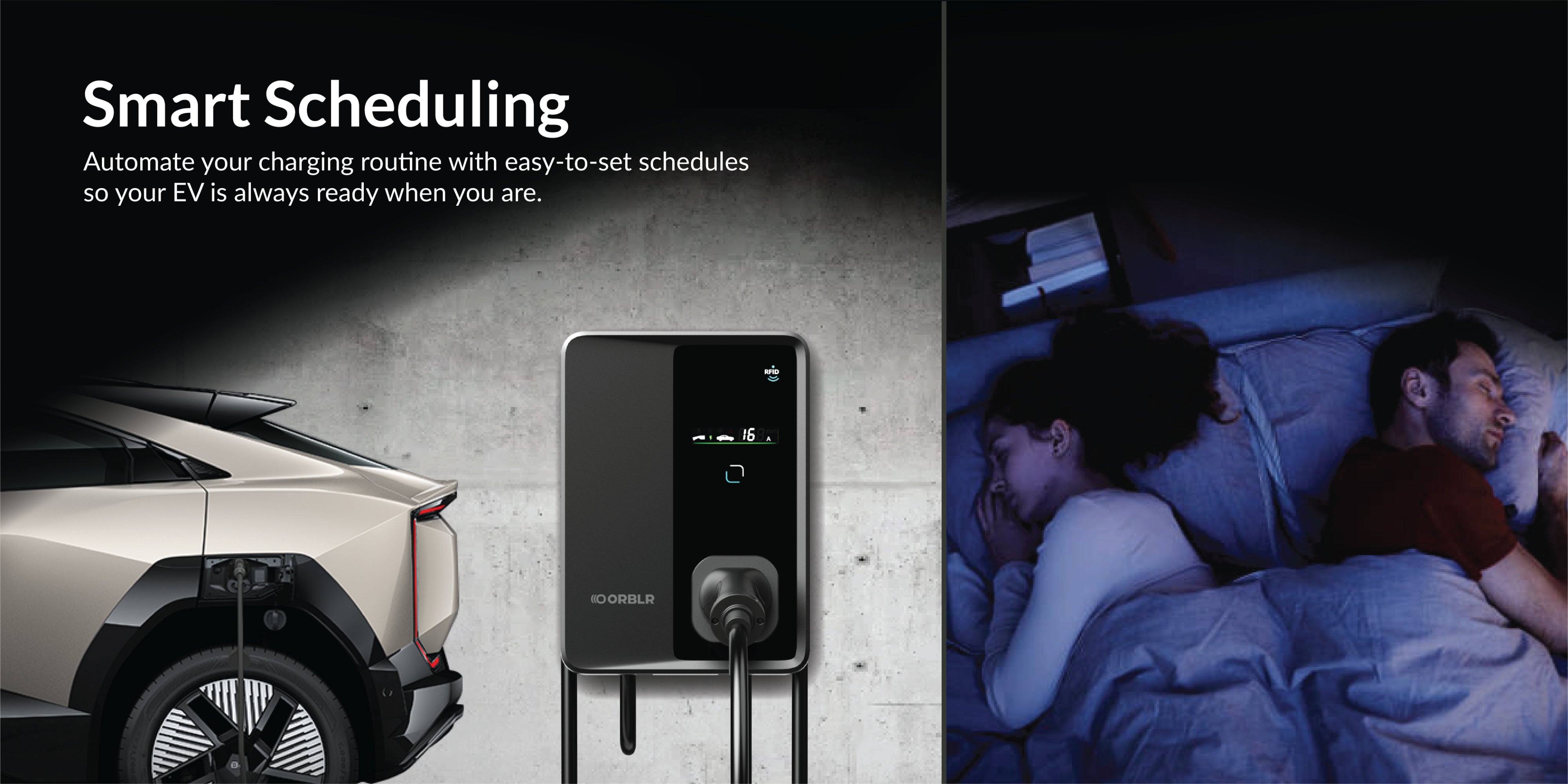

Smart Scheduling

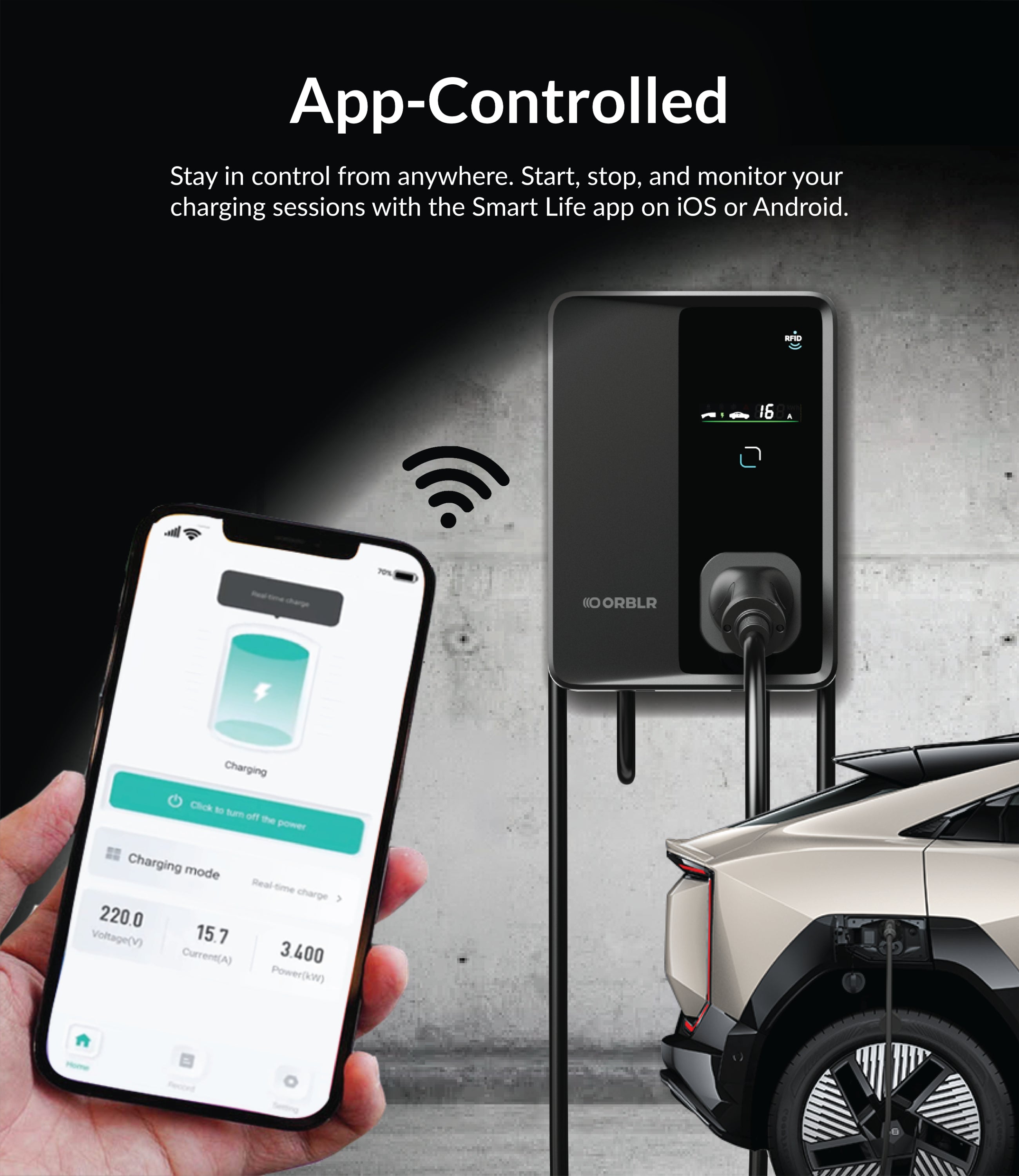

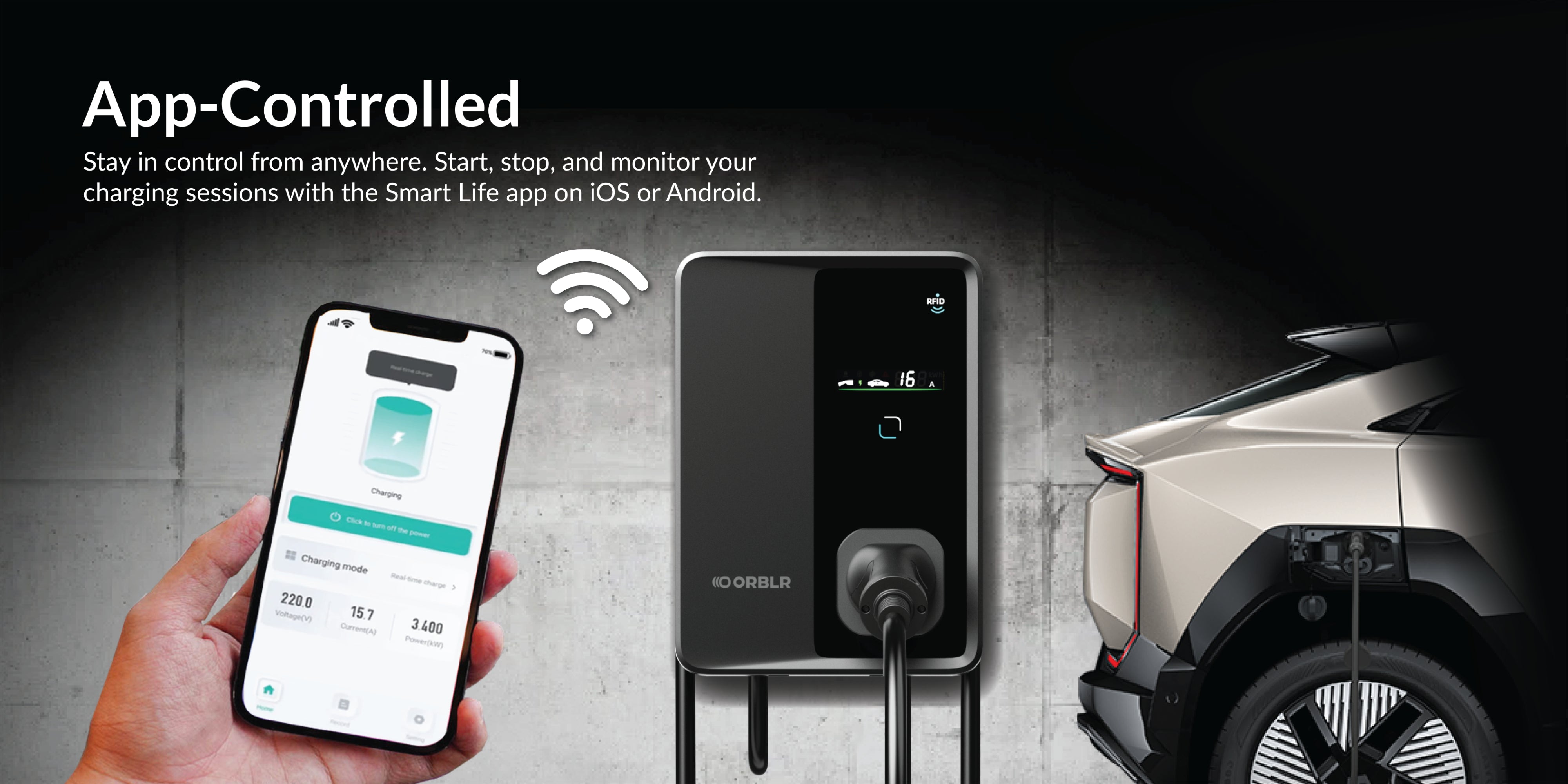

App Controlled

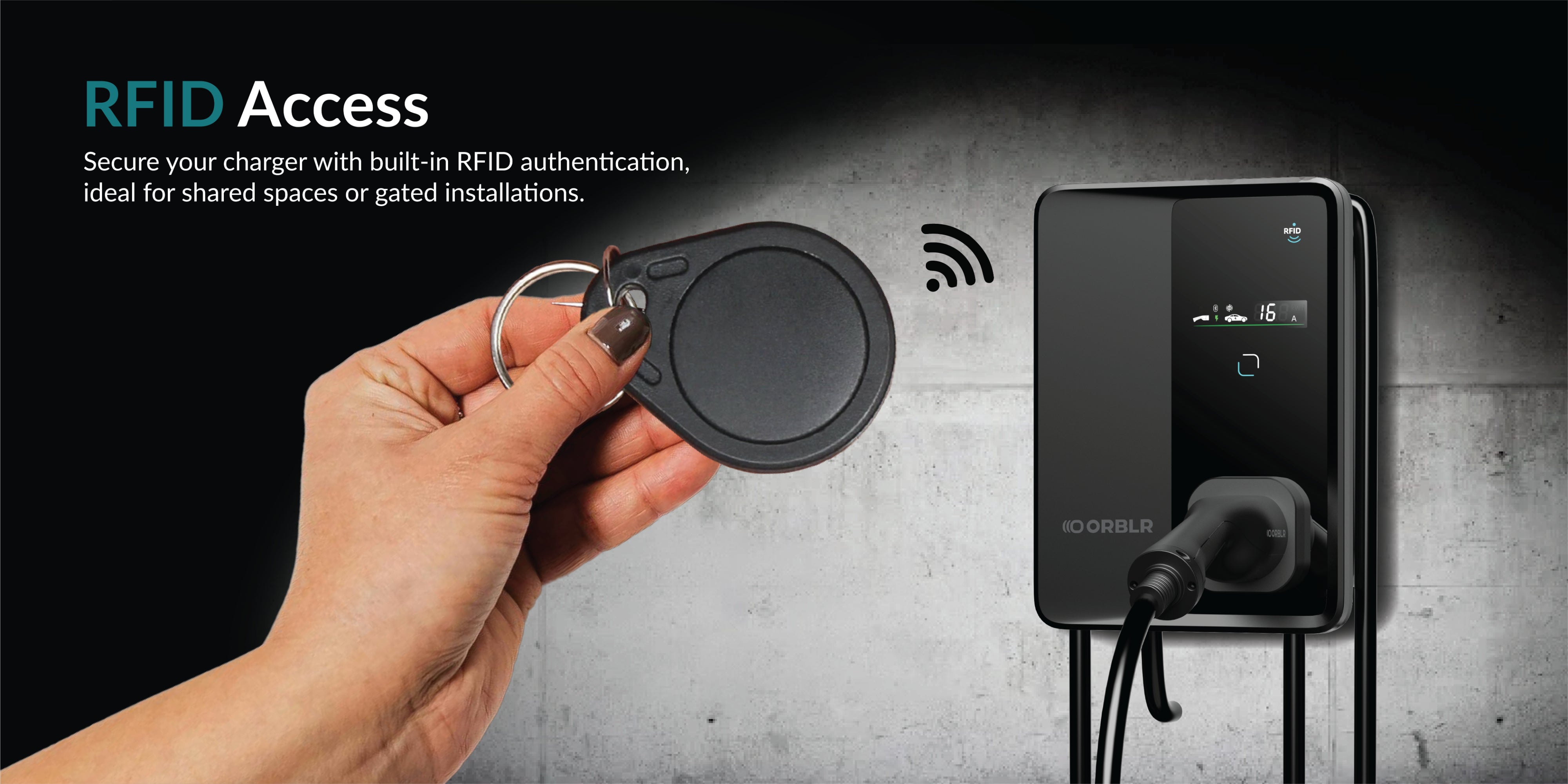

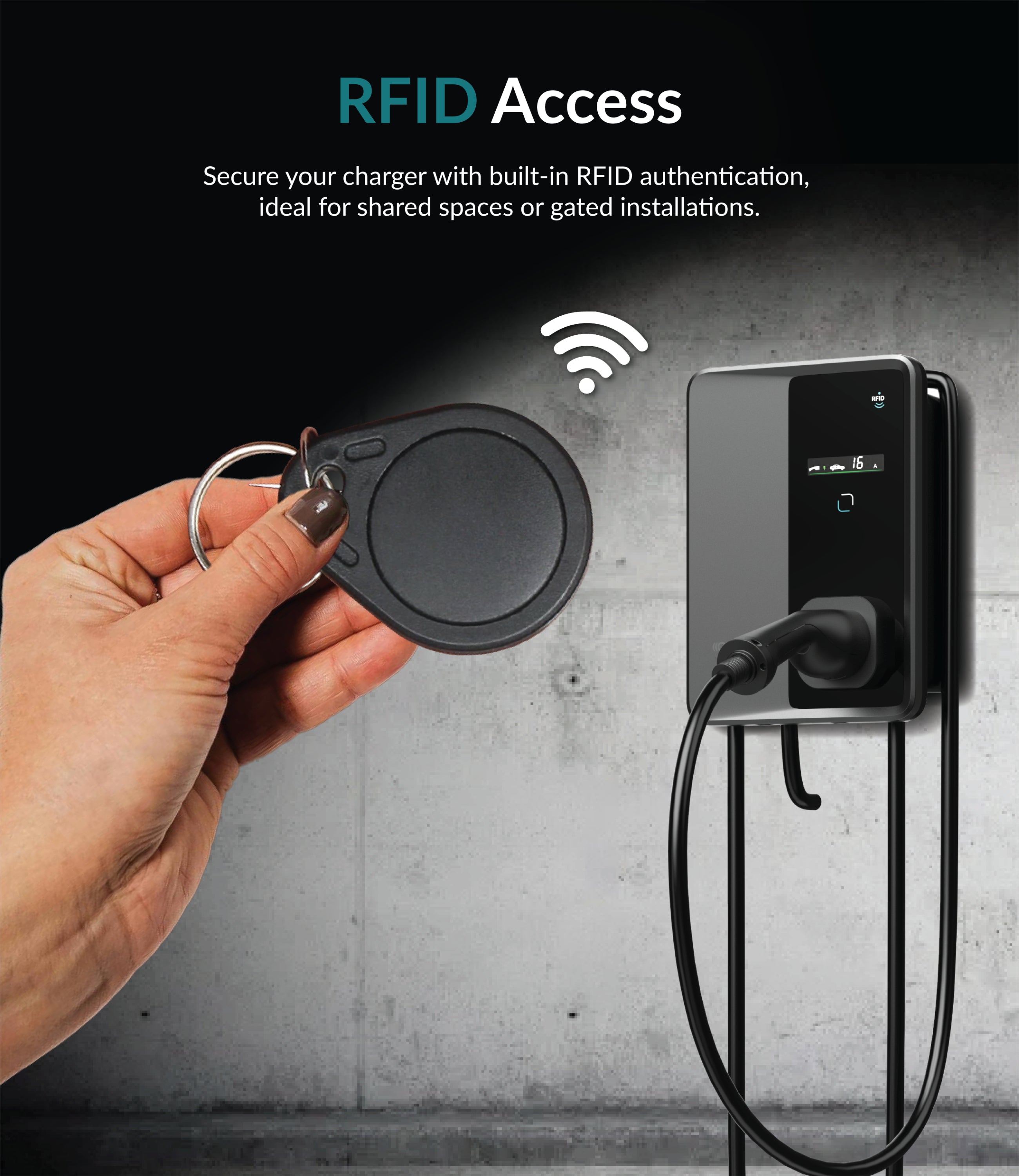

RFID Access

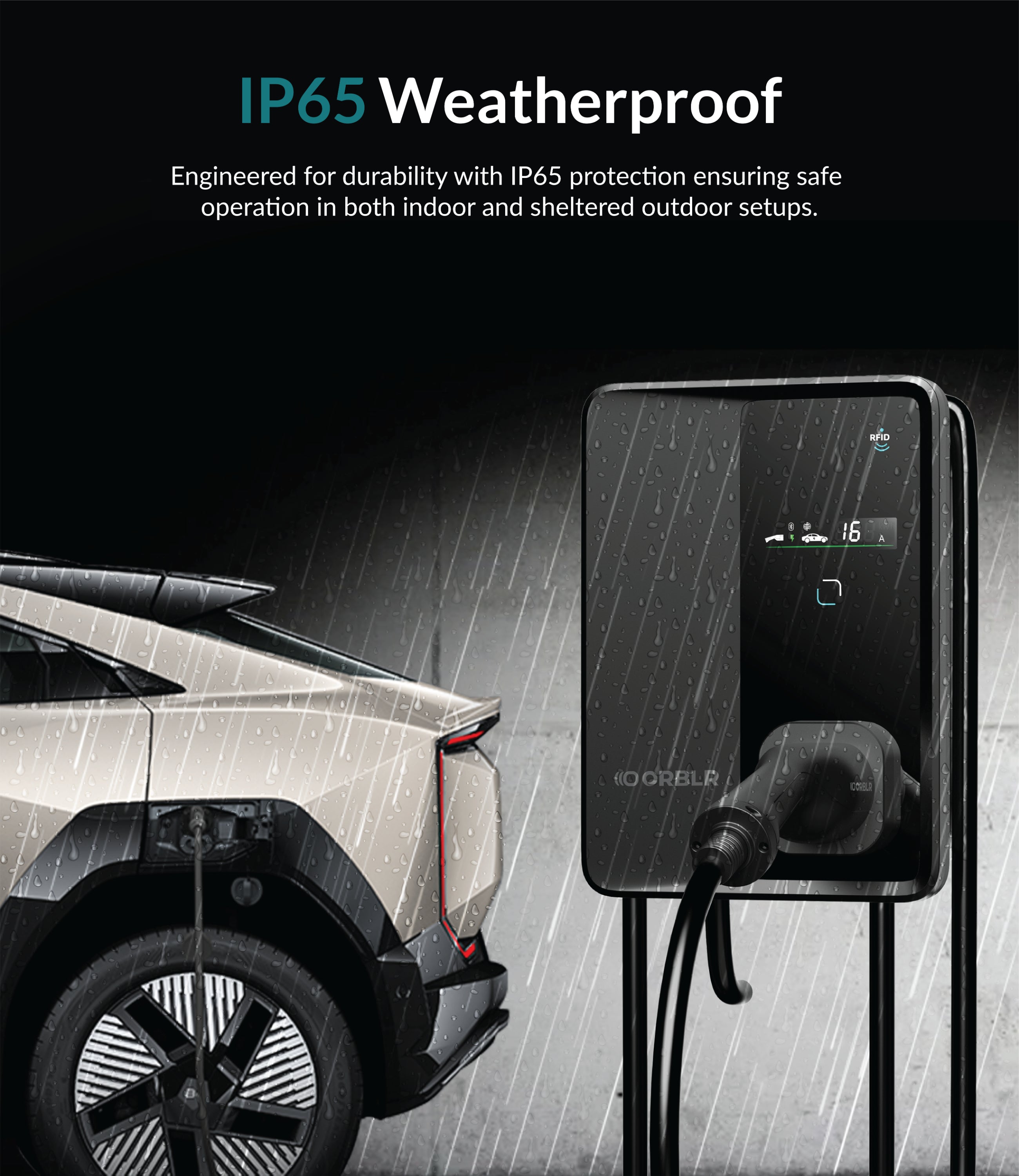

IP65 Weatherproof
2-Year Warranty
Description
The CYBR11 | 11kW Wall Charger is engineered for faster, smarter home and commercial EV charging. With powerful 3-phase output, app connectivity, and built-in safety features, CYBR11 offers a secure, efficient charging experience—ideal for EV owners who need speed and reliability in a fixed setup.
Features
Fast & Efficient Charging: Delivering up to 11kW of power via a three-phase connection, this charger can add up to 60 km of range per hour (vehicle-dependent), making it ideal for everyday EV users who want quicker turnaround times.
Smart Life App Integration: Easily connect via Wi-Fi or Bluetooth to the Smart Life app (iOS & Android). Start or stop charging remotely, set timers, view energy usage, and schedule charging to save on electricity costs — all from your phone.
Adjustable Current Control: Tailor the charging speed to your needs. With adjustable current settings (6A–16A), you can manage load, prevent circuit overloads, or optimize for solar-powered homes.
Wall-Mounted Design: Built for fixed installation, the wall-mounted enclosure is ideal for garages, carports, apartment parking or commercial premises. Durable and weather-resistant with IP65 rating for reliable indoor or outdoor use.
Secure & Safe Charging: Equipped with over-voltage, over-current, leakage, and ground fault protection, along with RFID access control — perfect for shared spaces or multi-user environments.
Universal EV Compatibility: Features a Type 2 (IEC 62196) connector — compatible with most electric vehicles available in India and globally.
Specifications
| Specifications | Details |
|---|---|
| Product | 11 kW Wall Charger |
| Voltage | Three phase 415v |
| Current | Three phase 16A/32A |
| Power Frequency | 50Hz |
| Input Connector | Hardwired |
| Rated Power | Three phase 11kW, 22kW(CYBR22) |
| Material | Polycarbonate (PC) and ABS |
| Display | Charging Data |
| IP Protection | IP65 |
| Communication | Wi-Fi, Bluetooth, Ethernet standard |
| User Authentication | RFID Tag, App |
| Software Update | OTA |
| Dimensions | 24.5 x 33.6 x 13.4 cm |
| Cable Length | 5 Meters |
| Standards | IEC 61851, IEC62196, EN50620/IEC62893 |
| Operating Temperature | -25°C to +45°C |
| Compliance | CE, CB, FCC, UKCA, RoHS |
| Safety Features |
Over Current Protection, Over/Under Voltage Protection, Over Temperature Protection, Surge Protection, Short-Circuit Protection, Leakage Protection, Ground Protection, Sticking Relay Detection, Ground Continuity Monitoring, Station Power Capacity Protection, Residual Current Protection, Integrated Surge Protection
|
| Installation | Wall Mounted |
Warranty & Support
Have peace of mind with a 2-year warranty on all parts and a longer 5-year warranty on the cable and enclosure. We also offer lifetime product support for your ongoing satisfaction.
What’s in the Box
1x 11kW Wall EV Charger
2x RFID Tags
1x Wall Mount Plate
3x Fastner & Nuts
1x 1 Meter Cable Pre-installed
1x Warranty Card
1x User Manual
EVO7+ is Compatible with Leading EV Manufacturers
Control Your Charger with a Tap
The CYBR11 is fully compatible with the Smart Life – Smart Living app, available for both iOS and Android. Effortlessly schedule, monitor, and manage your charging sessions directly from your phone.
FAQs
Find answers to common questions about the CYBR11, including setup, app control, warranty information, safety features, and product support.
Is the CYBR11 charger suitable for all electric vehicles?
Yes, CYBR11 features a Type 2 (IEC 62196) connector and complies with international standards, making it compatible with all major EVs that support Three-phase AC charging.
Can I install the CYBR11 charger outdoors?
Absolutely. The CYBR11 is rated IP65, meaning it is dust-tight and protected against low-pressure water jets. It is suitable for both indoor and sheltered outdoor installations.
Do you offer installation service for CYBR11?
Yes, we offer a two-step support process to make installation easier and more reliable for our customers:
1. Home Inspection & Survey (Free)
After your charger is delivered, a certified technician will visit your location to check if installation is feasible. This visit includes:
- Checking sanctioned load and energy consumption
- Verifying earthing and voltage
- Inspecting cable route and charger placement
- Assessing accessibility of your parking area
After the visit, you’ll receive a detailed installation readiness report.
This inspection is complimentary and ensures the installation goes smoothly without surprises.
2. Installation Service (Optional & Paid – ₹2,999 Postpaid)
If you'd like our technician to handle the installation, you can select this option during product purchase.
What’s included:
- Professional installation service: Mounting of charger, cable laying, termination, and commissioning.
Please note:
- The ₹2,999 fee covers service only.
- Hardware/accessories such as cables, MCB, MCB box, conduit, and other components will be charged separately, based on the technician’s inspection report.
- This amount is not collected at checkout. It is paid directly to the technician during installation.
You may also get the charger installed by your own technician using the inspection report. However, 97% of our customers recommend installation by ORBLR-certified technicians for reliable service and peace of mind.
Can I control and monitor CYBR11 charging remotely?
Yes. CYBR11 supports remote control and monitoring via the Smart Life app:
Download for iPhone (iOS)
The app enables you to schedule charging sessions, monitor real-time charging status, and customize settings directly from your smartphone.
What safety features are included with the CYBR11 charger?
The CYBR11 is equipped with comprehensive safety protections, including:
- Over Current Protection
- Over/Under Voltage Protection
- Over Temperature Protection
- Surge Protection
- Short-Circuit Protection
- Leakage Protection
- Ground Protection
- Sticking Relay Detection
- Ground Continuity Monitoring
- Station Power Capacity Protection
- Residual Current Protection
- Integrated Surge Protection
These features ensure maximum safety for you and your vehicle during every charging session.
Can I adjust the charging current on the CYBR11 charger?
Yes. The charger supports adjustable current between 6A and 16A, allowing you to customize charging speed based on your electrical load or preferences.
What is the mounting style of the CYBR11 charger?
CYBR11 is designed for wall-mounted installation. However, if you don't have a suitable wall, you can purchase our Pole Mount accessory separately for flexible installation.
Is RFID Tag authentication supported?
Yes, CYBR11 supports RFID access control, making it ideal for shared parking spaces or gated communities. Only authorized users can initiate charging using RFID tags.
We provide 2 RFID Tags with every charger. If you need additional Tags, you can conveniently purchase them from our website as an accessory.
NOTE: You can register and use up to 3 different RFID tags at a time with CYBR11.
What warranty and support are provided with the CYBR11?
The CYBR11 comes with a 2-year warranty covering all parts and a 5-year warranty on the cable and enclosure. We also offer lifetime product support to ensure your satisfaction long after your purchase.
How do I register my CYBR11 Wall EV Charger after receiving it?
To register your CYBR11, please visit our Product Registration page and fill out the form. Your product warranty will be activated upon successful registration.
How do I claim the warranty if my CYBR11 charger encounters an issue?
If your CYBR11 experiences any issues, please visit our Warranty Claim page. Submit the form, and our support team will get in touch with you within 2–3 business days for assistance.
Who can I contact if I need further assistance?
If you require any additional support or have further questions, please reach out to us through our Contact Us page. Our team will be happy to assist you.
