ORBLR CYBR7 | 7.4kW Wall EV Charger | Single Phase
Shipping Free | Includes GST | 7 Days Return*

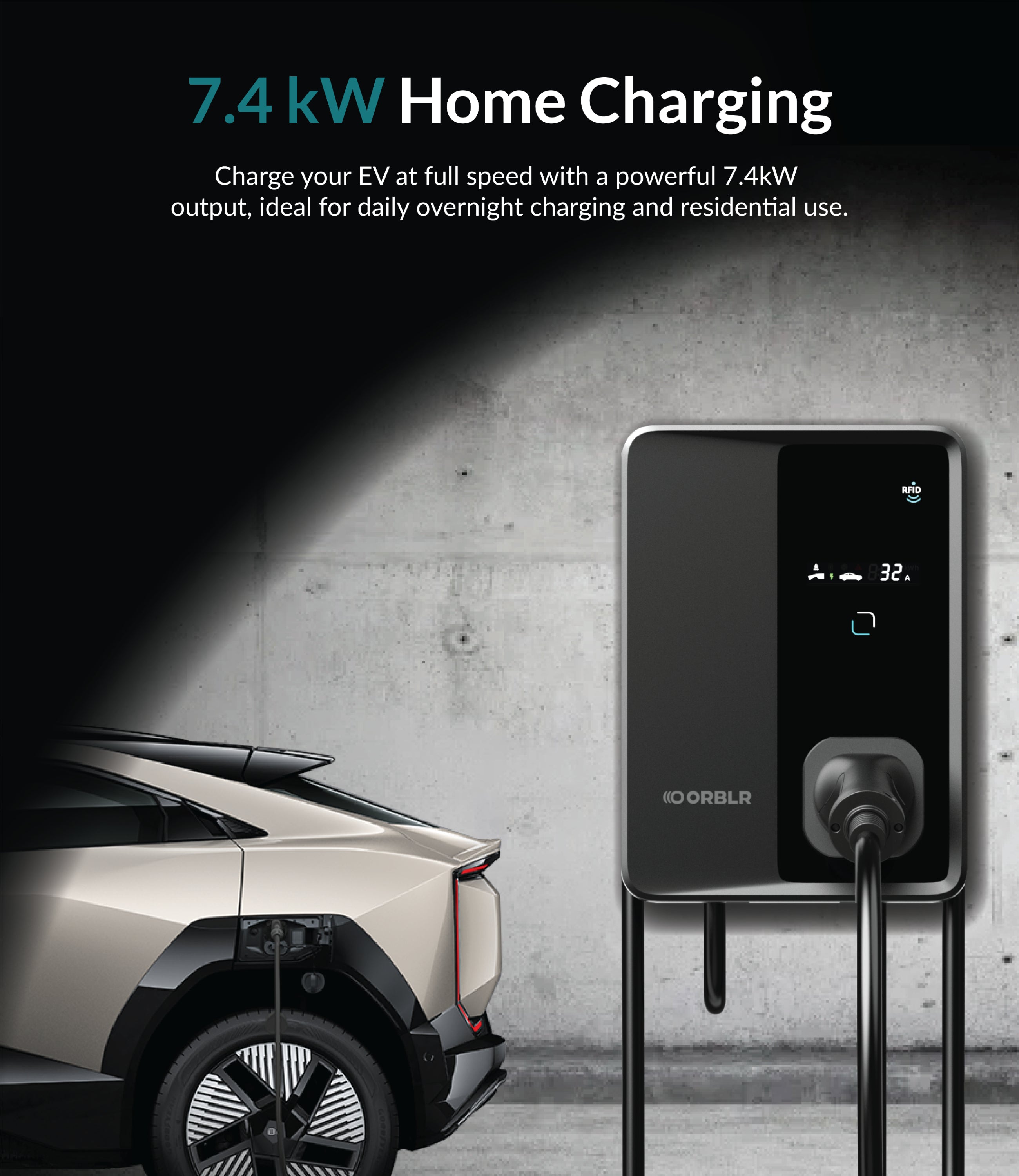

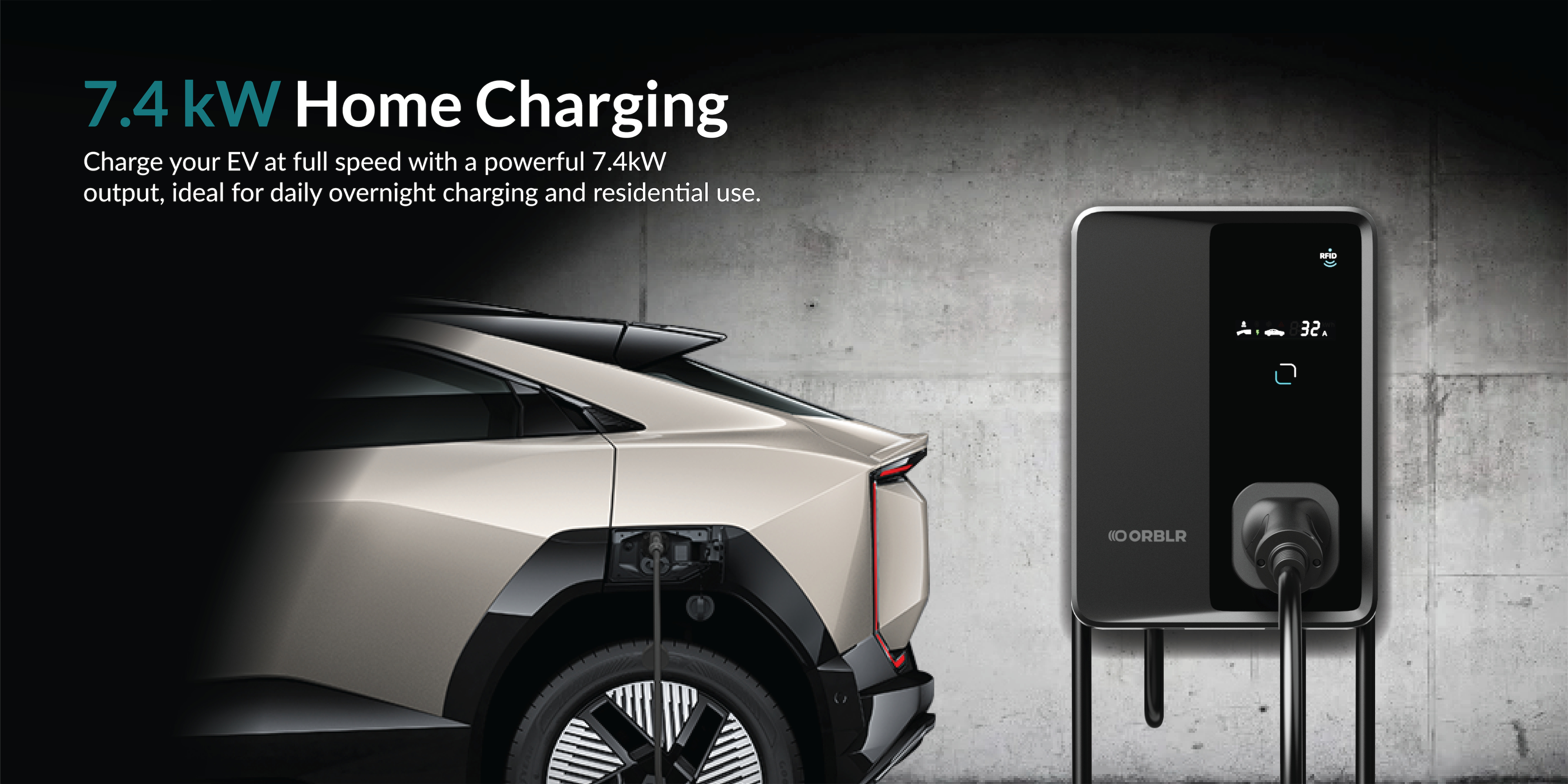

7.4 kW Home Charging
Smart Scheduling
App Controlled

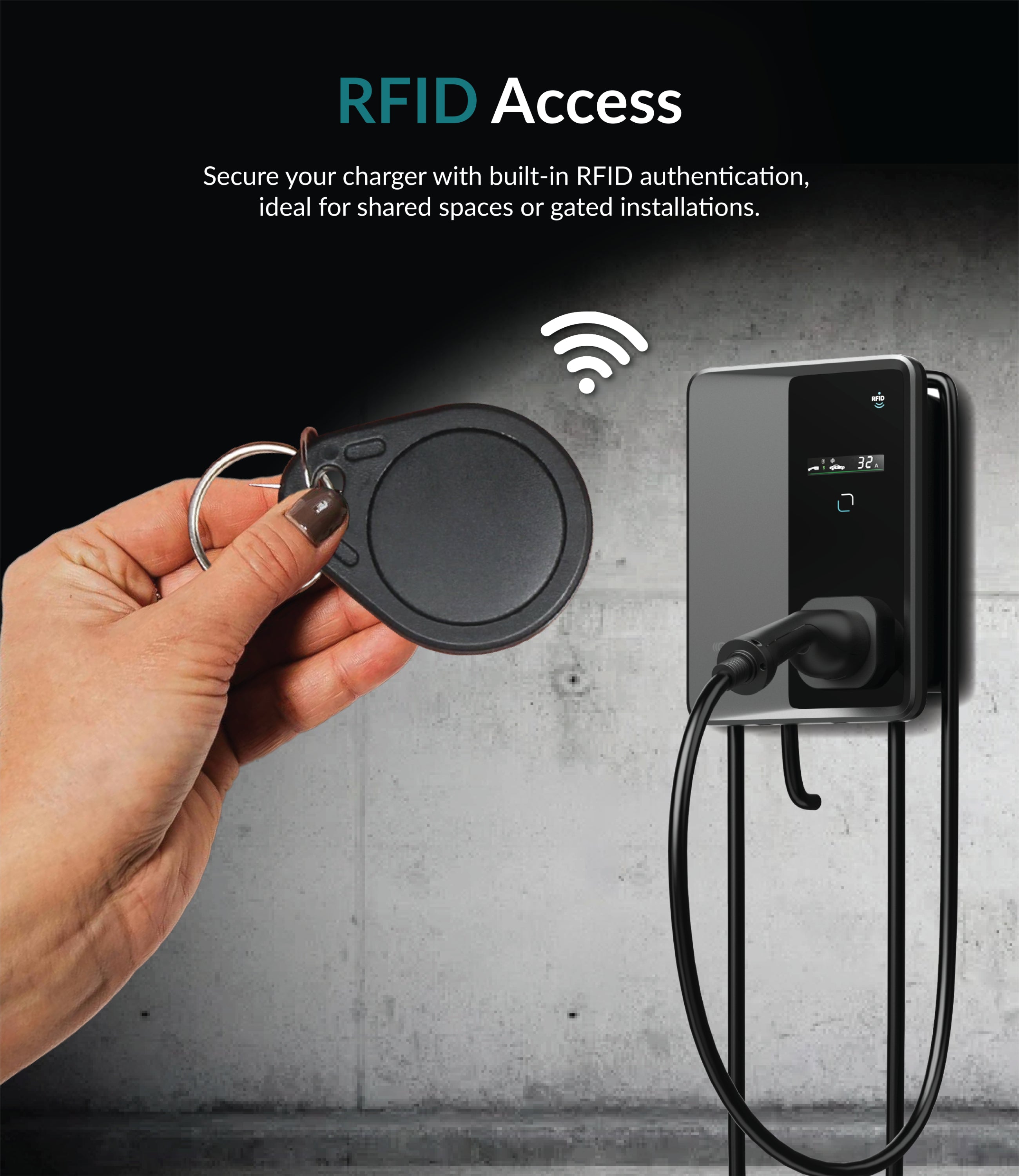

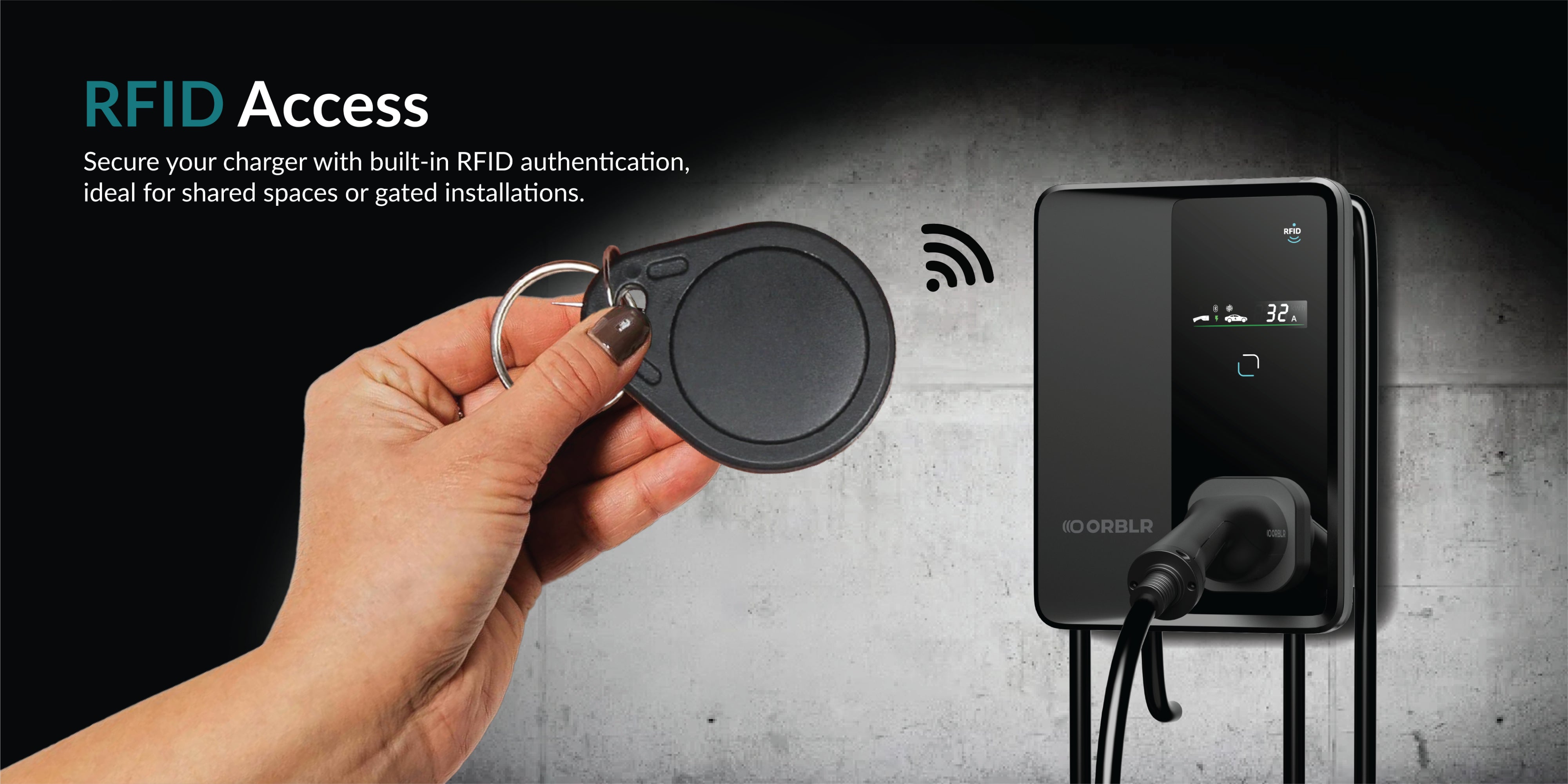

RFID Access

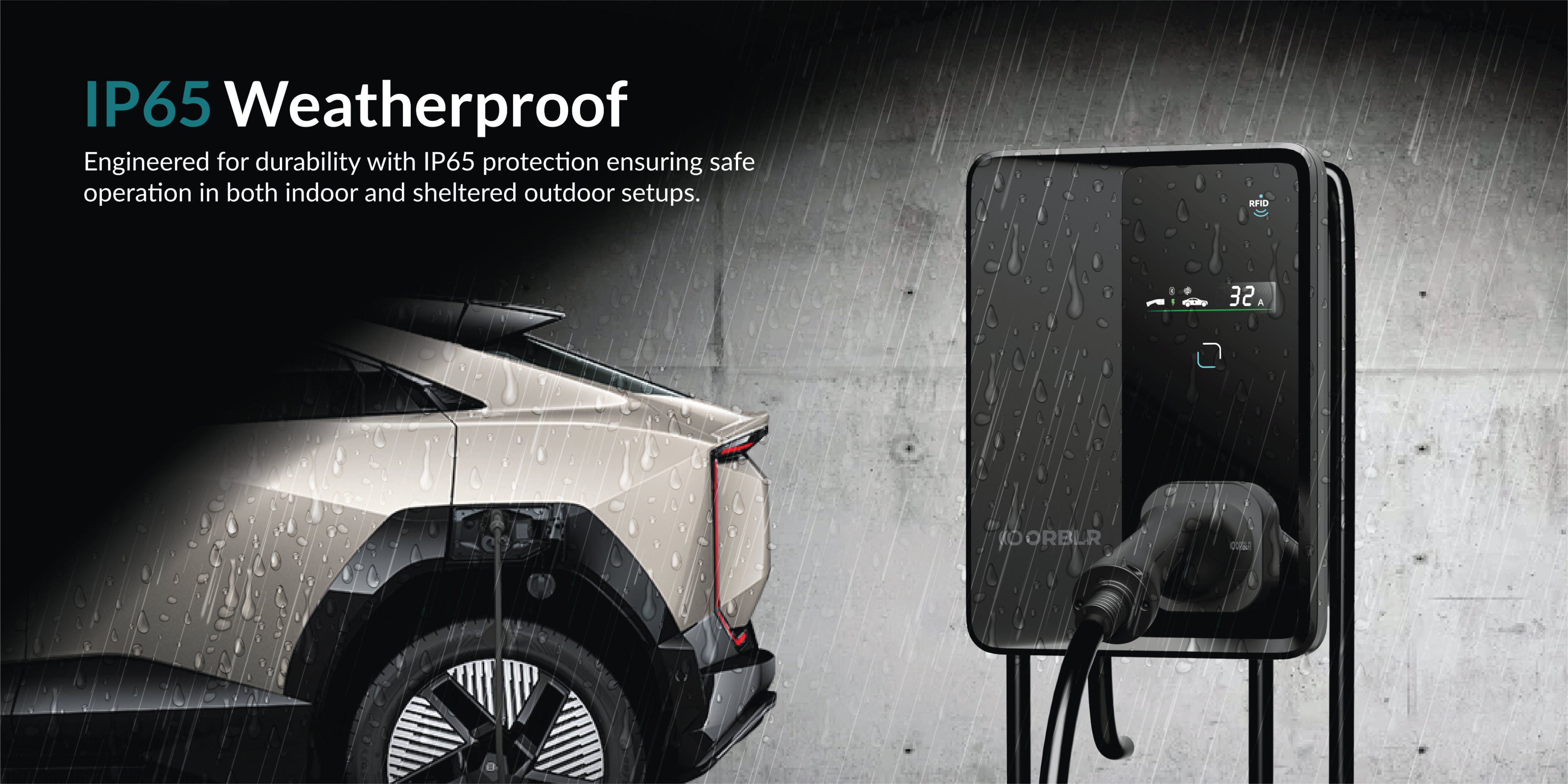

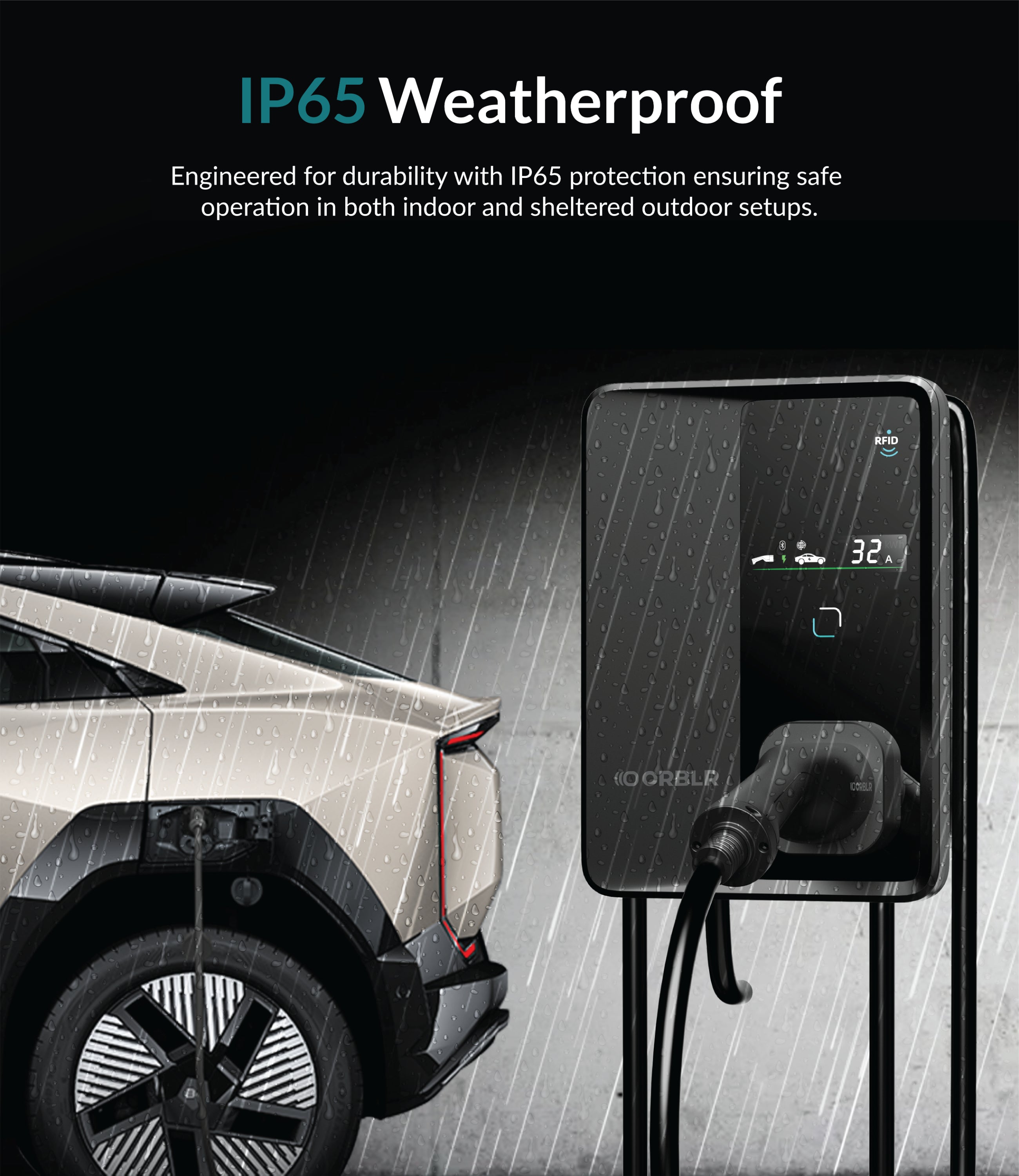

IP65 Weatherproof
2-Year Warranty
Description

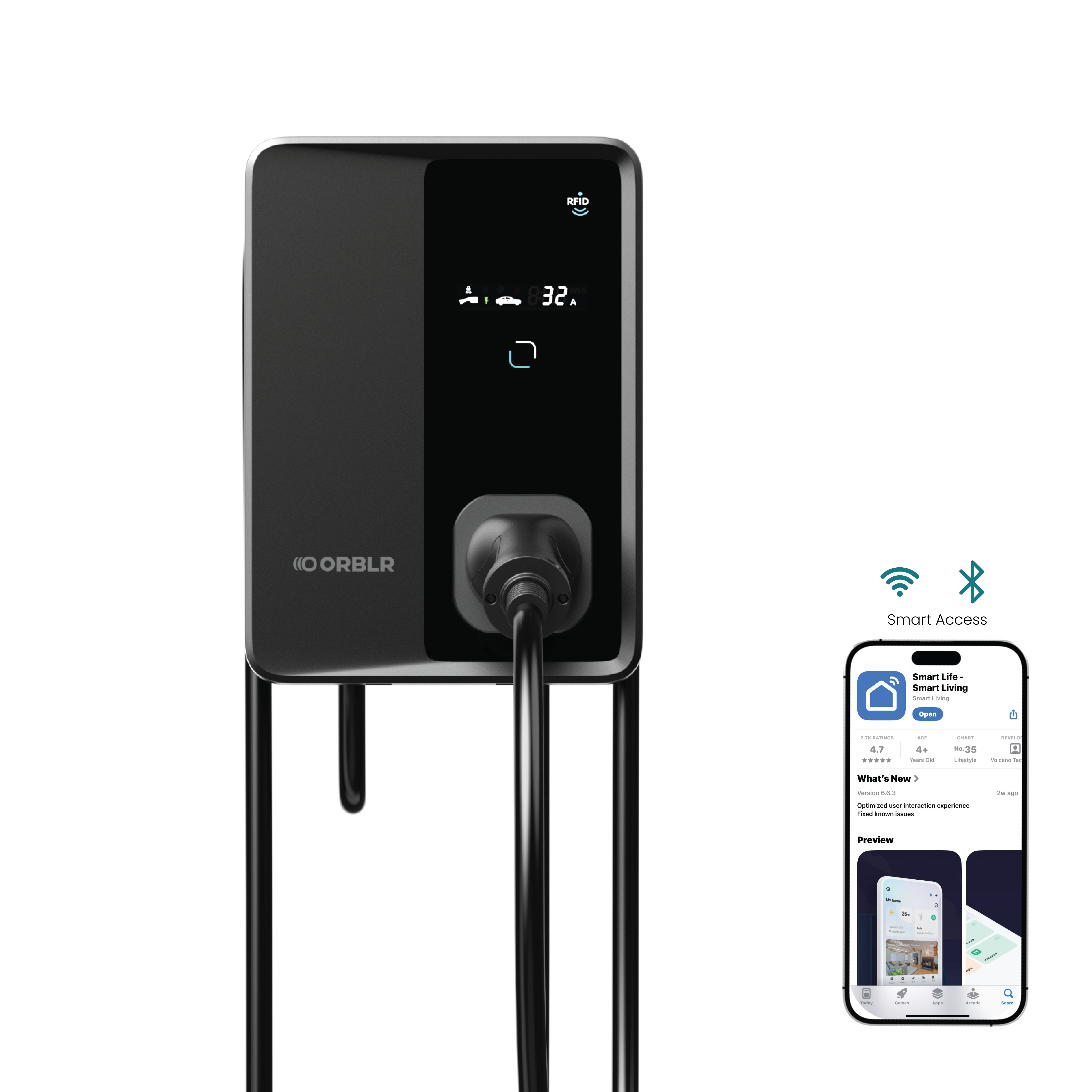

The CYBR7 | 7.4kW Wall Charger offers fast, safe, and smart home charging for your EV. With app control, adjustable current, and RFID access, it gives you complete control from your smartphone. Built for wall-mounted convenience and weatherproof durability, CYBR7 is the perfect everyday home charging solution.

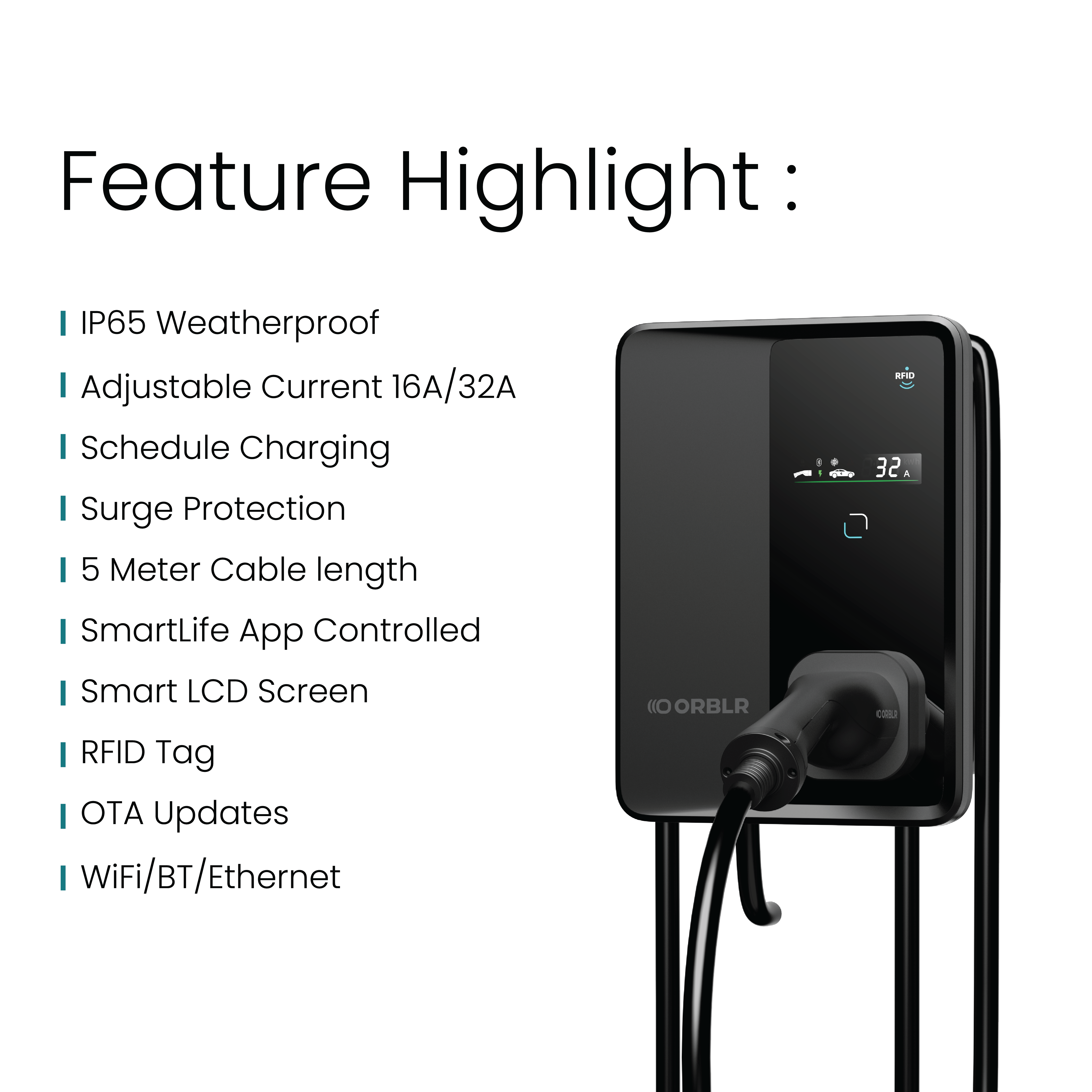

Features
Reliable Home Charging: With up to 7.4kW output on a single-phase connection, this charger delivers 30–40 km of range per hour, depending on your EV. It’s perfect for daily overnight charging or residential setups.

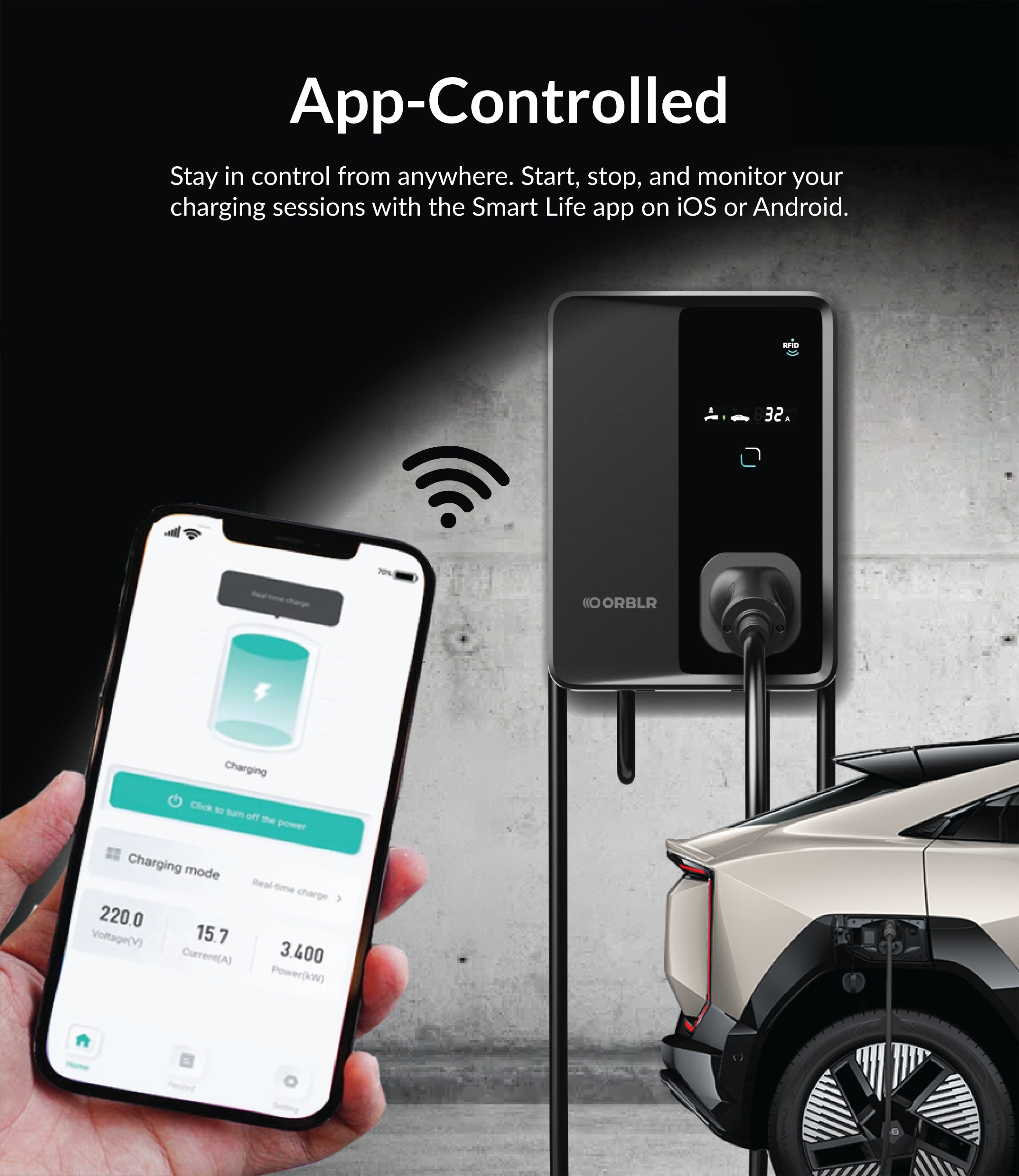

Smart Life App Connectivity: Manage charging from anywhere using the Smart Life app over Wi-Fi or Bluetooth. Start or stop charging remotely, schedule sessions, monitor energy usage, and save on electricity by charging during off-peak hours.
Adjustable Current (6A–32A): Supports customizable current settings between 6A and 32A, allowing you to optimize charging speed, manage household power loads, or reduce draw during limited supply periods.
Wall-Mounted Convenience: Designed for permanent installation, this compact unit is perfect for homes, apartments, and small businesses. With an IP65 weather rating, it’s suitable for both indoor and sheltered outdoor use.
Built-In Safety & RFID Access: Equipped with multiple safety protections including over-voltage, over-current, leakage, and ground fault detection. Also supports RFID card access for added security — ideal for shared parking or gated installations.
Wide EV Compatibility: Comes with a Type 2 (IEC 62196) connector, supporting all major electric vehicles compatible with single-phase AC charging.
Specifications
| Specifications | Details |
|---|---|
| Product | 7.4 kW Wall Charger |
| Voltage | Single phase 230v |
| Current | Single phase 32A |
| Power Frequency | 50Hz |
| Input Connector | Hardwired |
| Rated Power | Single phase 7.4kW |
| Material | Polycarbonate (PC) and ABS |
| Display | Charging Data |
| IP Protection | IP65 |
| Communication | Wi-Fi, Bluetooth, Ethernet standard |
| User Authentication | RFID Tag, App |
| Software Update | OTA |

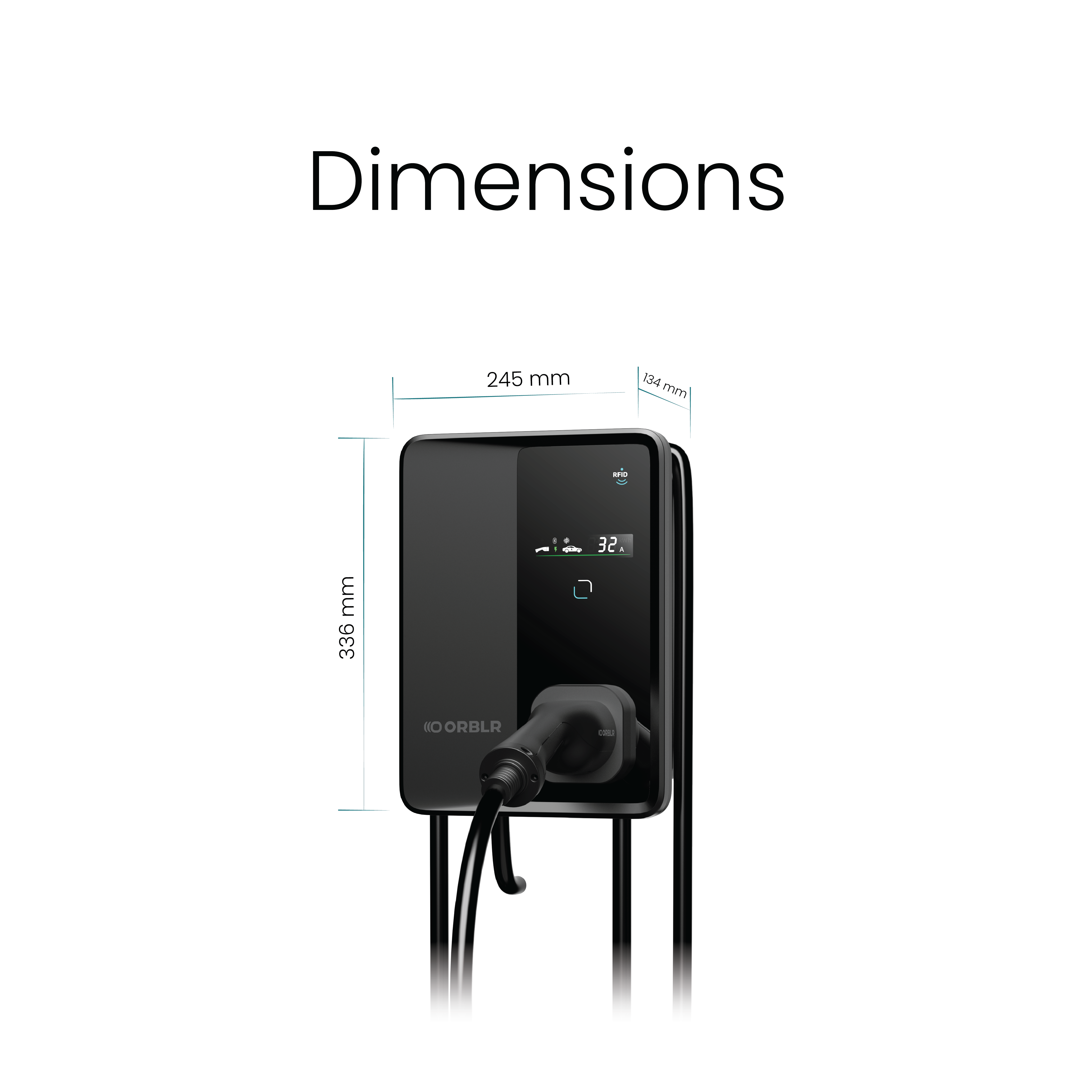

| Dimensions | 24.5 x 33.6 x 13.4 cm |
| Cable Length | 5 Meters |
| Standards | IEC 61851, IEC62196, EN50620/IEC62893 |
| Operating Temperature | -25°C to +45°C |
| Compliance | CE, CB, FCC, UKCA, RoHS |
| Safety Features |
Over Current Protection, Over/Under Voltage Protection, Over Temperature Protection, Surge Protection, Short-Circuit Protection, Leakage Protection, Ground Protection, Sticking Relay Detection, Ground Continuity Monitoring, Station Power Capacity Protection, Residual Current Protection, Integrated Surge Protection
|
| Installation | Wall Mounted |
Warranty & Support
Have peace of mind with a 2-year warranty on all parts and a longer 5-year warranty on the cable and enclosure. We also offer lifetime product support for your ongoing satisfaction.
What’s in the Box
1x 7.4kW Wall EV Charger
2x RFID Tags
1x Wall Mount Plate
3x Fastner & Nuts
1x 1 Meter Cable Pre-installed
1x Warranty Card
1x User Manual
EVO7+ is Compatible with Leading EV Manufacturers

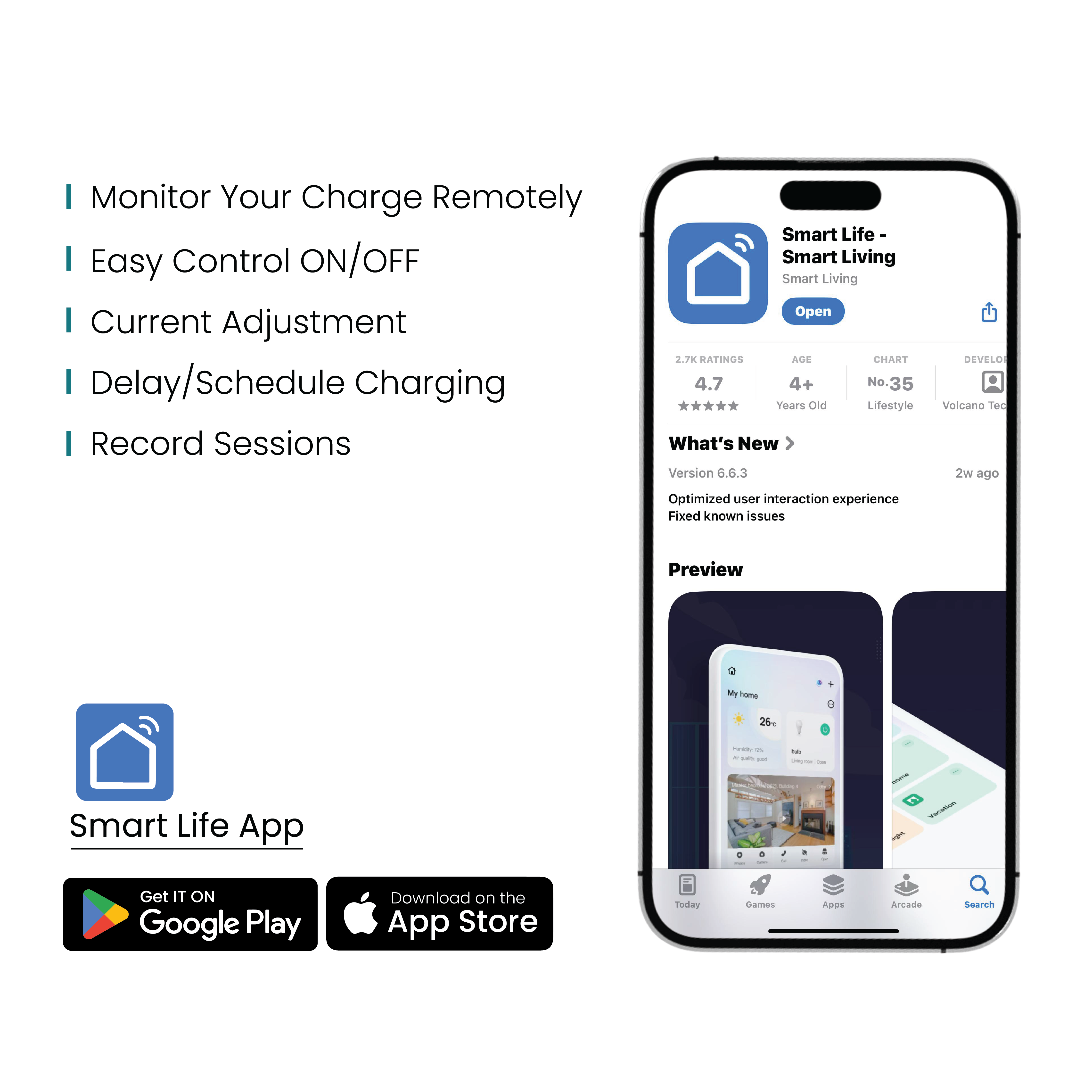

Control Your Charger with a Tap
The CYBR7 is fully compatible with the Smart Life – Smart Living app, available for both iOS and Android. Effortlessly schedule, monitor, and manage your charging sessions directly from your phone.
FAQs
Find answers to common questions about the CYBR7, including setup, app control, warranty information, safety features, and product support.
Is the CYBR7 charger suitable for all electric vehicles?
Yes, CYBR7 features a Type 2 (IEC 62196) connector and complies with international standards, making it compatible with all major EVs that support single-phase AC charging.
Can I install the CYBR7 charger outdoors?
Absolutely. The CYBR7 is rated IP65, meaning it is dust-tight and protected against low-pressure water jets. It is suitable for both indoor and sheltered outdoor installations.
Do you offer installation service for CYBR7?
Yes, we offer a two-step support process to make installation easier and more reliable for our customers:
1. Home Inspection & Survey (Free)
After your charger is delivered, a certified technician will visit your location to check if installation is feasible. This visit includes:
- Checking sanctioned load and energy consumption
- Verifying earthing and voltage
- Inspecting cable route and charger placement
- Assessing accessibility of your parking area
After the visit, you’ll receive a detailed installation readiness report.
This inspection is complimentary and ensures the installation goes smoothly without surprises.
2. Installation Service (Optional & Paid – ₹2,999 Postpaid)
If you'd like our technician to handle the installation, you can select this option during product purchase.
What’s included:
- Professional installation service: Mounting of charger, cable laying, termination, and commissioning.
Please note:
- The ₹2,999 fee covers service only.
- Hardware/accessories such as cables, MCB, MCB box, conduit, and other components will be charged separately, based on the technician’s inspection report.
- This amount is not collected at checkout. It is paid directly to the technician during installation.
You may also get the charger installed by your own technician using the inspection report. However, 97% of our customers recommend installation by ORBLR-certified technicians for reliable service and peace of mind.
Can I control and monitor CYBR7 charging remotely?
Yes. CYBR7 supports remote control and monitoring via the Smart Life app:
Download for iPhone (iOS)
The app enables you to schedule charging sessions, monitor real-time charging status, and customize settings directly from your smartphone.

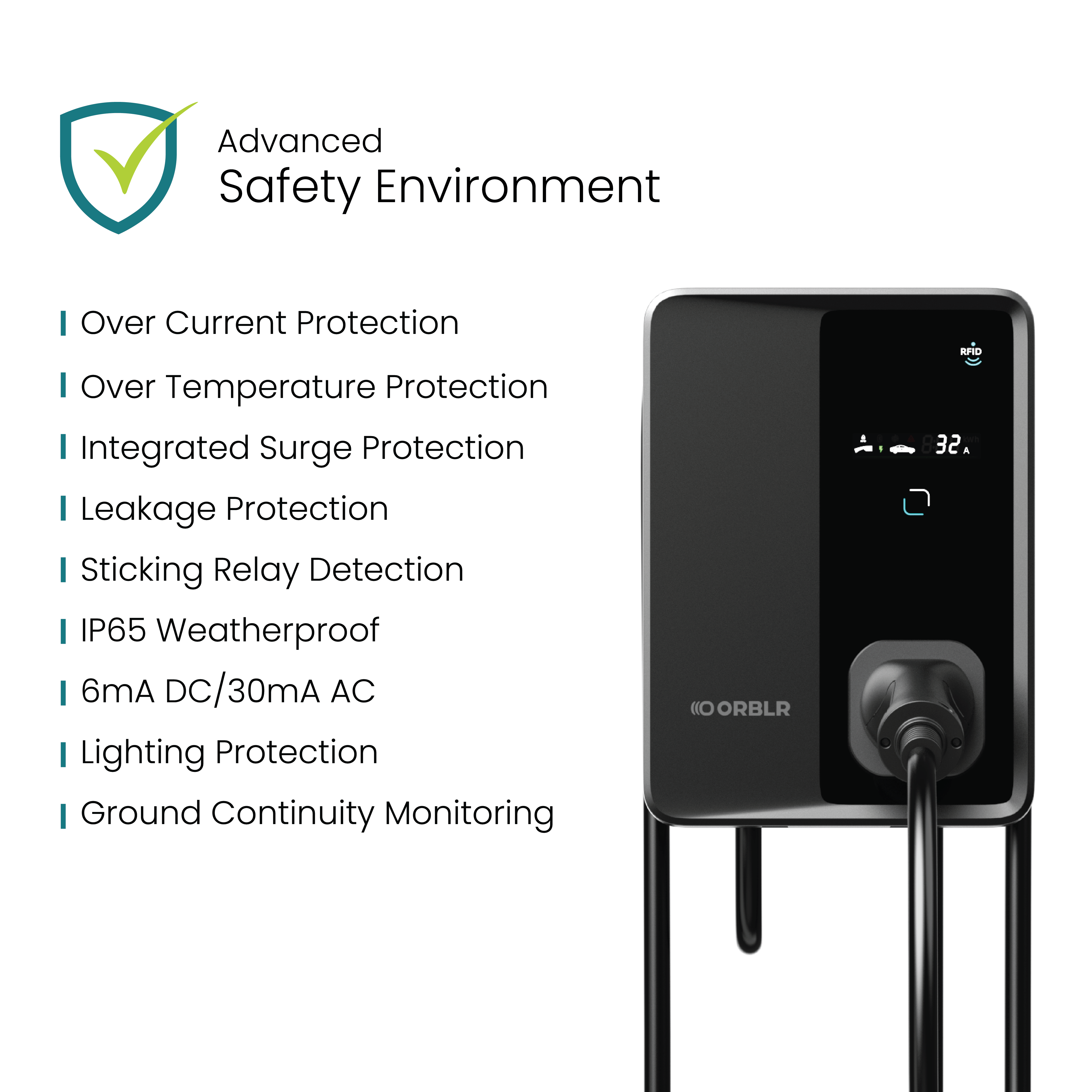

What safety features are included with the CYBR7 charger?
The CYBR7 is equipped with comprehensive safety protections, including:
- Over Current Protection
- Over/Under Voltage Protection
- Over Temperature Protection
- Surge Protection
- Short-Circuit Protection
- Leakage Protection
- Ground Protection
- Sticking Relay Detection
- Ground Continuity Monitoring
- Station Power Capacity Protection
- Residual Current Protection
- Integrated Surge Protection
These features ensure maximum safety for you and your vehicle during every charging session.
Can I adjust the charging current on the CYBR7 charger?
Yes. The charger supports adjustable current between 6A and 32A, allowing you to customize charging speed based on your electrical load or preferences.
What is the mounting style of the CYBR7 charger?
CYBR7 is designed for wall-mounted installation. However, if you don't have a suitable wall, you can purchase our Pole Mount accessory separately for flexible installation.
Is RFID Tag authentication supported?
Yes, CYBR7 supports RFID access control, making it ideal for shared parking spaces or gated communities. Only authorized users can initiate charging using RFID tags.
We provide 2 RFID Tags with every charger. If you need additional Tags, you can conveniently purchase them from our website as an accessory.
NOTE: You can register and use up to 3 different RFID tags at a time with CYBR7.
What warranty and support are provided with the CYBR7?
The CYBR7 comes with a 2-year warranty covering all parts and a 5-year warranty on the cable and enclosure. We also offer lifetime product support to ensure your satisfaction long after your purchase.
How do I register my CYBR7 Wall EV Charger after receiving it?
To register your CYBR7, please visit our Product Registration page and fill out the form. Your product warranty will be activated upon successful registration.
How do I claim the warranty if my CYBR7 charger encounters an issue?
If your CYBR7 experiences any issues, please visit our Warranty Claim page. Submit the form, and our support team will get in touch with you within 2–3 business days for assistance.
Who can I contact if I need further assistance?
If you require any additional support or have further questions, please reach out to us through our Contact Us page. Our team will be happy to assist you.
